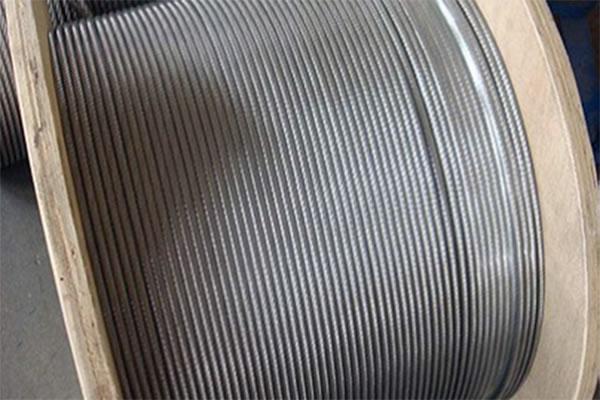

Electric Railway Stainless Steel Wire Rope

Electric Railway Stainless Steel Wire Rope
Electric Railway Stainless Steel Wire Rope
Inquiry Form

Application

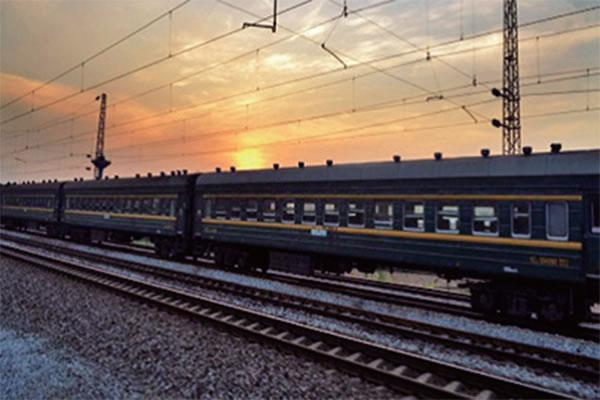

These stainless steel wire ropes are used for the pulley assembly tensioning device of the catenary for electric railways. The cables apply tension to hoist catenary structures above electric railway networks.

Characteristic
1. Flexible and easy to use safely.
2. Manufactured as per DIN requirements as well customized requirements.

Product Structures

  • 8×19S-IWR
  • 8×19W-IWR
  • 8×25Fi-IWR
  • 8×26SW-IWR
  • 8×31WS-IWR
Specifications
8×19S-IWR, 8×19W-IWR, 8×25Fi-IWR, 8×26SW-IWR, 8×31WS-IWR
Structure Nominal Diameter (mm) Diameter Tolerance (mm) Min. Breaking Force (KN) Approximate Weight (kg/100m)
8 0/0.56 42.6 28.3
8.75 0/0.56 54 33.9
9 0/0.56 54 35.8
10 0/0.56 61.2 44.2
8×19S 11 0/0.66 74 53.2
8×19W 12 0/0.66 83.3 63.7
8×25Fi 13 0/0.82 103 74.8
8×26SW 14 0/0.82 120 86.7
8×31WS 16 0/0.82 156 113
18 0/1.10 187 143
20 0/1.10 231 176
22 0/1.20 296 219
24 0/1.20 332 252
26 0/1.40 390 296
28 0/1.40 453 343
