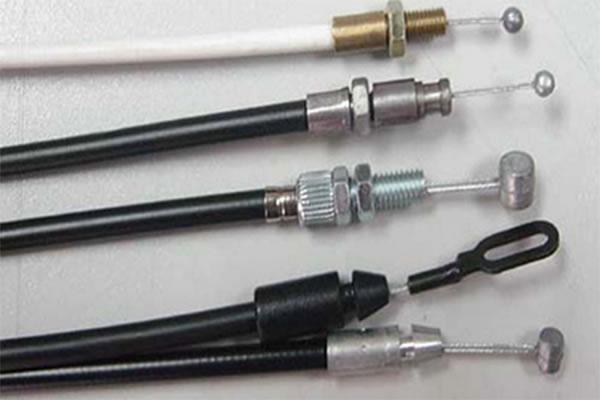

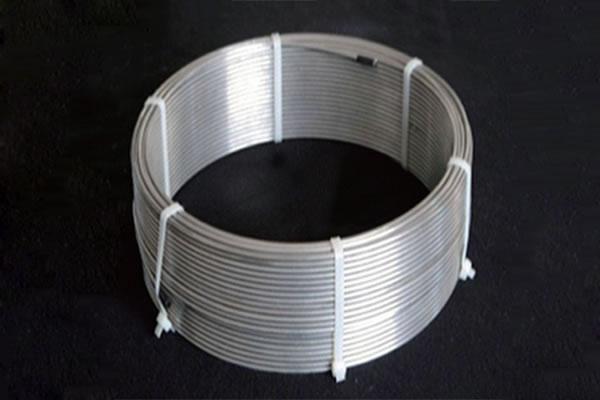

Stainless Steel Control Cable

Stainless Steel Control Cable
Stainless Steel Control Cable
Inquiry Form

Application
These stainless steel control cable for control purposes are suitable for a wide range of applications from aircraft control to mechanical engineering projects.

Characteristic
1. Flexible and easy to use with a wide range of applications.
2. Manufactured as per DIN standards,(GB/T9944-2002) as well as customized requirements.

Product Structures

  • 1×7
  • 1×19
Specifications
1×7, 1×19
Structure Nominal Diameter (mm) Diameter Tolerance (mm) Min. Breaking Force (KN) Approximate Weight (kg/100m)
1×7 0.15 0/+0.03 0.025 0.011
1×7 0.25 0/+0.03 0.063 0.031
1×7 0.3 0/+0.03 0.093 0.044
1×7 0.35 0/+0.03 0.127 0.061
1×7 0.4 0/+0.03 0.157 0.08
1×7 0.45 0/+0.03 0.2 0.1
1×7 0.5 0/+0.06 0.255 0.125
1×7 0.6 0/+0.06 0.382 0.18
1×7 0.7 0/+0.06 0.54 0.245
1×7 0.8 0/+0.10 0.667 0.327
1×7 0.9 0/+0.10 0.823 0.4
1×7 1 0/+0.10 1 0.5
1×7 1.2 0/+0.10 1.32 0.7
1×19 0.6 0/+0.08 0.343 0.175
1×19 0.7 0/+0.08 0.47 0.24
1×19 0.8 0/+0.08 0.617 0.31
1×19 0.9 0/+0.09 0.774 0.39
1×19 1 0/+0.10 0.95 0.5
1×19 1.2 0/+0.12 1.27 0.7
1×19 1.5 0/+0.12 2.25 1.1
1×19 2 0/+0.20 3.82 2
1×19 2.5 0/+0.25 5.58 3.13
1×19 3 0/+0.30 8.03 4.5
1×19 3.5 0/+0.35 10.6 6.13
1×19 4 0/+0.40 13.9 8.19
1×19 5 0/+0.50 21 12.9
1×19 6 0/+0.60 30.4 18.5
