Elevator Rope

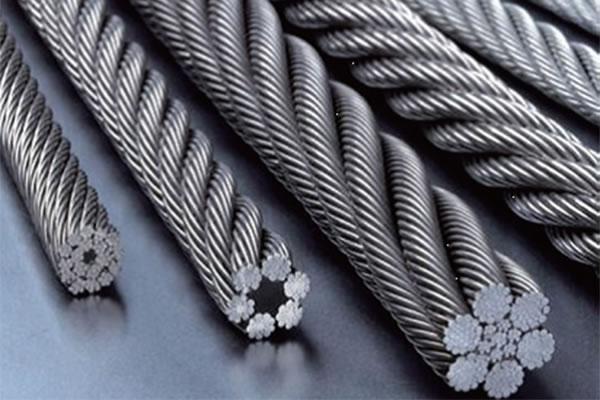

Elevator Steel Wire Rope
Elevator Steel Wire Rope
Inquiry Form

Characteristic
1. Safe and reliable hoisting operation for high-speed passenger and freight elevators.
2. These ropes are manufactured using high quality fiber cores and grease lubricant to ensure anti-fatigue performance.
3. The cables feature excellent flexibility and stability with minimal elongation to ensure smooth operation.

Product Structure

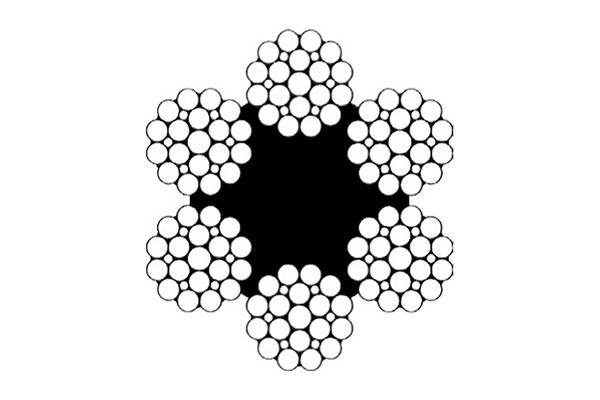

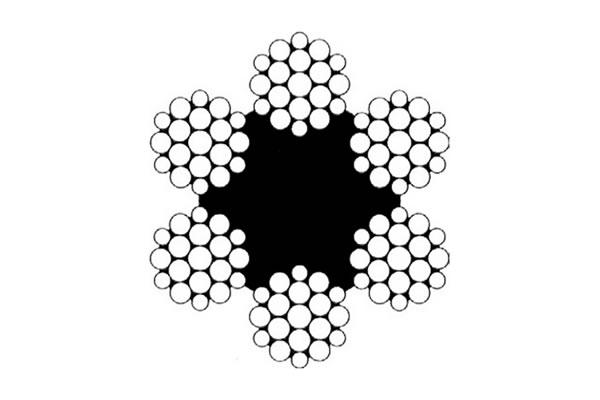

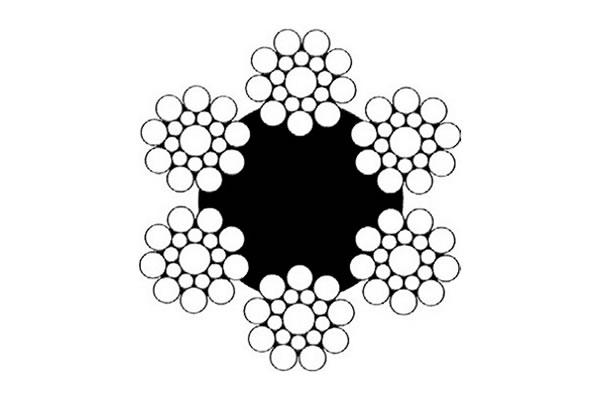

  • 6×19S-FC
  • 6×19W-FC
  • 6×25Fi-FC
Specifications
Nominal
Dia. (mm) 		Approximate
Weight 		Nominal Tensile Strength. Mpa
Dual Tensile (Mpa) Single Tensile (Mpa)
1180/1770 1320/1620 1370/1770 1570/1770 1570 1620 1770
Min. Breaking Load. KN
D kg/100m kN kN kN kN kN kN kN
6.0 12.9 16.3 16.8 17.8 19.5 18.7 19.2 21.0
6.3 14.2 17.9 - - 21.5 - 21.2 23.2
6.5 15.2 19.1 19.7 20.9 22.9 21.9 22.6 24.7
8.0 23.0 28.9 29.8 31.7 34.6 33.2 34.2 37.4
9.0 29.1 36.6 37.7 40.1 43.8 42 43.3 47.3
9.5 32.4 40.8 42.0 44.7 48.8 46.8 48.2 52.7
10.0 35.9 45.2 46.5 49.5 54.1 51.8 53.5 58.4
11.0 43.4 54.7 56.3 59.9 65.5 62.7 64.7 70.7
12.0 51.7 65.1 67.0 71.3 77.9 74.6 77 84.1
12.7 57.9 72.9 75.0 79.8 87.3 83.6 86.2 94.2
13.0 60.7 76.4 78.6 83.7 91.5 87.6 90.3 98.7
14.0 70.4 88.6 91.2 97.0 106 102 105 114
14.3 73.4 92.4 - - 111 - - 119
15.0 80.8 102 - 111 122 117 - 131
16.0 91.9 116 119 127 139 133 137 150
17.5 110 138 - - 166 - - 179
18.0 116 146 151 160 175 168 173 189
19.0 130 163 168 179 195 187 193 211
20.0 144 181 186 198 216 207 214 234
20.6 152 192 - - 230 - - 248
22.0 174 219 225 240 262 251 259 283

Product Structure

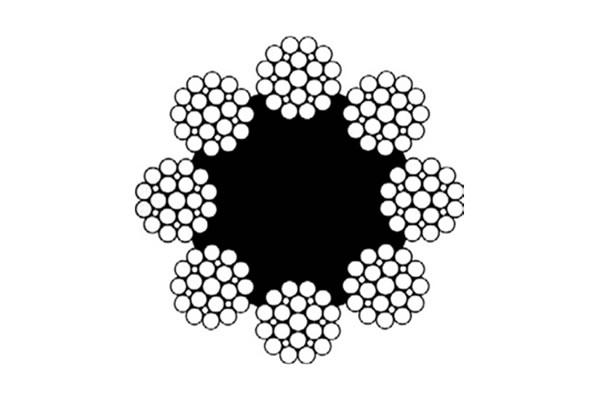

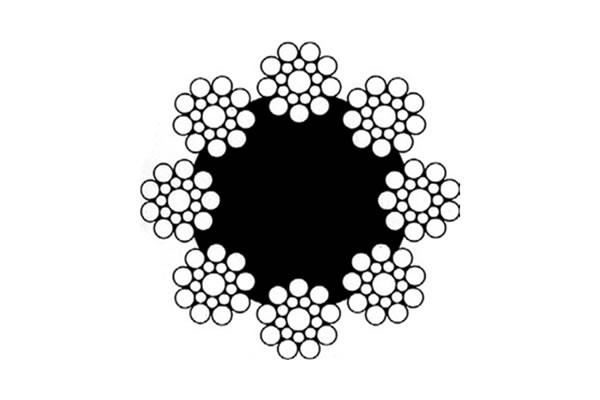

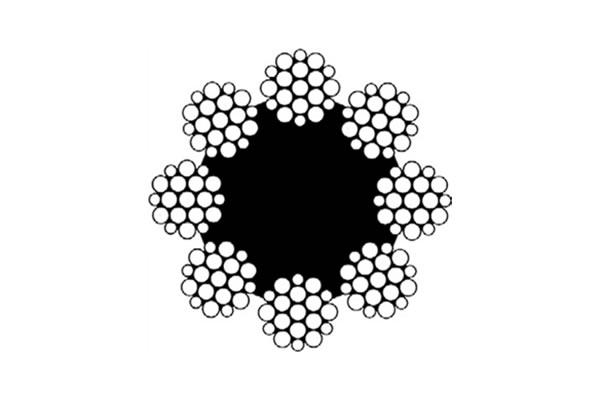

  • 8×19S-FC
  • 8×19W-FC
  • 8×25Fi-FC
Specifications
Nominal
Dia. (mm) 		Approximate
Weight 		Nominal Tensile Strength. Mpa
Dual Tensile (Mpa) Single Tensile (Mpa)
1180/1770 1320/1620 1370/1770 1570/1770 1570 1620 1770
Min. Breaking Load. KN
D kg/100m kN kN kN kN kN kN kN
8 21.8 25.7 26.5 28.1 30.8 29.4 30.4 33.2
9 27.5 32.5 - 35.6 38.9 37.3 - 42
9.5 30.7 36.2 37.3 39.7 43.6 41.5 42.8 46.8
10 34 40.1 41.3 44 48.1 40.6 47.5 51.9
11 41.1 48.6 50 53.2 58.1 55.7 57.4 62.8
12 49 57.8 59.5 63.3 69.2 66.2 68.4 74.7
12.7 54.8 64.7 66.6 70.9 77.5 74.2 76.6 83.6
13 57.5 67.8 69.8 74.3 81.2 77.7 80.2 87.6
14 66.6 78.7 81 86.1 94.2 90.2 93 102
14.3 69.5 82.1 - - 98.3 - - -
15 76.5 90.3 - 98.9 108 104 - 117
16 87 103 106 113 123 118 122 133
17.5 104 123 - - 147 - - -
18 110 130 134 142 156 149 154 168
19 123 145 149 159 173 166 171 187
20 136 161 165 176 192 184 190 207
20.6 144 170 - - 204 - - -
22 165 194 200 213 233 223 230 251

Product Structure

  • 8×19S-IWRC
  • 8×19W-IWRC
  • 8×25Fi-IWRC
Specifications
Nominal
Dia. (mm) 		Approximate
Weight 		Nominal Tensile Strength. Mpa
Dual Tensile (Mpa) Single Tensile (Mpa)
1180/1770 1370/1770 1570/1770 1570 1770
Min. Breaking Load. KN
D kg/100m kN kN kN kN kN
8 26 33.6 35.8 38 35.8 40.3
9 33 42.5 45.3 48.2 45.3 51
9.5 36.7 47.4 50.4 53.7 50.4 56.9
10 40.7 52.5 55.9 59.5 55.9 63
11 49.2 63.5 67.6 71.9 67.6 76.2
12 58.6 75.6 80.5 85.6 80.5 90.7
12.7 65.6 84.7 90.1 95.6 90.1 102
13 68.8 88.7 94.5 100 94.5 106
14 79.8 102 110 117 110 124
15 91.6 118 126 134 126 142
16 104 134 143 152 143 161
18 132 170 181 193 181 204
19 147 190 202 215 202 227
20 163 210 224 238 224 252
22 197 254 271 288 271 305
