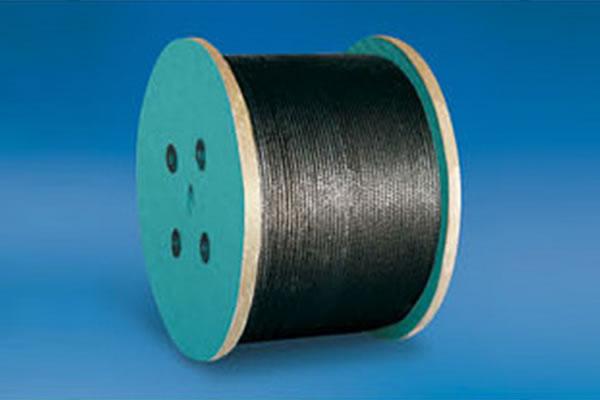

Parallel Lay Steel Wire Rope

Application

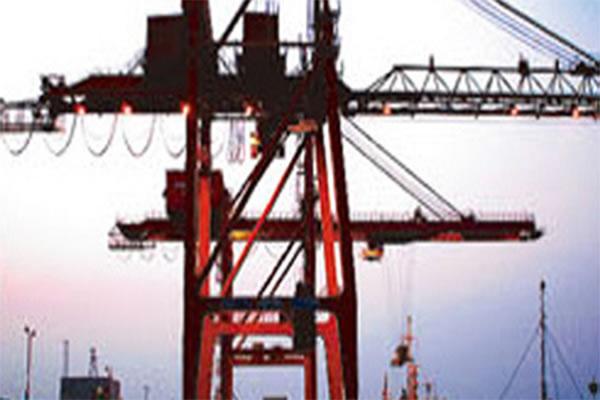

Fasten parallel lay steel wire ropes are often used for port, steel mill, oil well, mining and other general engineering purposes.

Characteristic
1. Good wear resistance and high fatigue resistance.
2. Manufactured as per GB, JIS, RR-W, API standards, as well as customized requirements.

Product Structure

6×19S-FC
6×19S-IWRC
6×19W-FC
6×19W-IWRC

Specifications

Nominal Diam (mm)	Approximate Weight		Nominal Tensile Strength (Mpa)
			1570		1670		1770		1870		1960		2160
			Min. Breaking Load
	FC	IWR/ IWS	FC	IWR/ IWS	FC	IWR/ IWS	FC	IWR/ IWS	FC	IWR/ IWS	FC	IWR/ IWS	FC	IWR/ IWS
mm	kg/100m		KN
8	25.9	23	35.8	33.2	38	35.3	40.3	37.4	42.6	39.5	44.7	41.4	49.2	45.6
9	32.8	29.2	45.3	42	48.2	44.6	51	47.3	53.9	50	56.5	52.4	62.3	57.7
10	40.5	36	55.9	51.8	59.5	55.1	63	58.4	66.6	61.7	69.8	64.7	76.9	71.3
12	58.3	51.8	80.5	74.6	85.6	79.4	90.7	84.1	95.9	88.9	100.5	93.1	110.7	102.6
13	68.4	60.8	94.5	87.6	100.5	93.1	106.5	98.7	112.5	104.3	117.9	109.3	130	120.5
14	79.4	70.6	109.5	101.5	116.5	108	123.5	114.5	130.5	121	136.8	126.8	150.7	139.7
16	103.7	92.2	143	133	152	141	161	150	170	158	179	166	197	182
18	131	117	181	168	193	179	204	189	216	200	226	210	249	231
20	162	144	224	207	238	220	252	234	266	247	279	259	308	285
22	196	174	271	251	288	267	305	283	322	299	338	313	372	345
24	233	207	322	298	342	317	363	336	383	355	402	373	443	411
26	274	243	378	350	402	373	426	395	450	417	472	437	520	482
28	318	282	438	406	466	432	494	458	522	484	547	507	603	559
30	365	324	503	466	535	496	567	526	599	555	628	582	692	642
32	415	369	572	531	609	564	645	598	682	632	715	662	787	730
34	468	416	646	599	687	637	728	675	770	713
36	525	467	724	671	770	714	817	757	863	800
38	585	520	807	748	858	796	910	843	961	891
40	648	576	894	829	951	882	1008	935	1065	987

Product Structures

6×49WS-IWRC
6×41WS-FC
6×49SWS-IWRC
6×49WS-FC
6×55SWS-IWRC
6×55SWS-FC

Parallel lay wire ropes with fiber core / steel core, 6 strands
Nominal Dia. (mm)	Approximate Weight		Nominal Tensile Strength. Mpa
			1570		1670		1770		1870		1960		2160
			Min. Breaking Load. KN
D	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)
mm	kg/100m		KN
10	41.8	37.1	55.9	51.8	59.5	55.1	63	58.4	66.6	61.7	69.8	64.7	76.9	71.3
12	60.2	53.4	80.5	74.6	85.6	79.4	90.7	84.1	95.9	88.9	100.5	93.1	110.7	102.6
13	70.6	62.7	94.5	87.6	100.5	93.1	106.5	98.7	112.5	104.3	117.9	109.3	130	120.5
14	81.9	72.7	109.5	101.5	116.5	108	123.5	114.5	130.5	121	136.8	126.8	150.7	139.7
16	107	95	143	133	152	141	161	150	170	158	179	166	197	182
18	135	120	181	168	193	179	204	189	216	200	226	210	249	231
20	167	148	224	207	238	220	252	234	266	247	279	259	308	285
22	202	180	271	251	288	267	305	283	322	299	338	313	372	245
24	241	214	322	298	342	317	363	336	383	355	402	373	443	411
26	283	251	378	350	402	373	426	395	450	417	472	437	520	482
28	328	291	438	406	466	432	494	458	522	484	547	507	603	559
30	376	334	503	466	535	496	567	526	599	555	628	582	692	642
32	428	380	572	531	609	564	645	598	682	632	715	662	787	730
34	483	429	646	599	687	637	728	675	770	713	807	748	889	824
36	542	481	724	671	770	714	817	757	863	800	904	838	997	924
38	604	536	807	748	858	796	910	843	961	891	1008	934	1110	1029
40	669	594	894	829	951	882	1008	935	1065	987	1116	1035	1230	1140
42	737	654	986	914	1049	972	1112	1030	1174	1089
44	809	718	1082	1003	1151	1067	1220	1131	1289	1195
46	884	785	1183	1096	1258	1166	1333	1236	1409	1306
48	963	855	1288	1194	1370	1270	1452	1346	1534	1422
50	1045	928	1397	1295	1486	1378	1575	1460	1664	1543
52	1130	1003	1511	1401	1608	1490	1704	1579	1800	1669
54	1219	1082	1630	1511	1734	1607	1837	1703	1941	1799
56	1311	1163	1753	1625	1864	1728	1976	1832	2088	1935
58	1406	1248	1880	1743	2000	1854	2120	1965	2239	2076
60	1505	1336	2012	1865	2140	1984	2268	2103	2397	2222
62	1607	1426	2148	1992	2285	2118	2422	2245	2559	2372
64	1710	1520	2289	2122	2435	2257	2581	2392	2727	2528
66	1820	1616	2435	2257	2590	2401	2745	2544	2900	2688
68	1933	1716	2584	2396	2749	2548	2914	2701	3078	2853
70	2048	1818	2739	2539	2913	2700	3088	2862	3262	3024

Product Structure

8×25Fi-IWRC
8×25Fi-FC
8×26WS-IWRC
8×26WS-FC

8×29Fi-IWRC
8×29Fi-FC
8×31WS-IWRC
8×31WS-FC

Parallel lay wire ropes with fiber core / steel core, 8 strands
Nominal Dia. (mm)	Approximate Weight		Nominal Tensile Strength. Mpa
			1570		1670		1770		1870		1960		2160
			Min. Breaking Load. KN
D	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)
mm	kg/100m		KN
10	43.5	34.4	54.3	46	57.8	48.9	61.2	51.9	64.7	54.8	67.8	57.4	74.7	63.3
11	52.6	41.6	65.7	55.7	69.9	59.2	74.1	62.8	78.3	66.3	82.1	69.4	90.4	76.6
12	62.6	49.5	78.2	66.2	83.2	70.5	88.2	74.7	93.2	78.9	97.7	82.7	107.6	91.1
13	73.5	58.1	91.8	77.7	97.7	82.7	103.5	87.6	109.3	92.6	114.6	97.1	126.3	107
14	85.3	67.4	106.5	90.2	113.3	95.9	120	101.6	126.8	107.4	132.9	112.6	146.5	124
16	111	88	139	118	148	125	157	133	166	140	174	147	191	162
18	141	111	176	149	187	159	198	168	210	178	220	186	242	205
20	174	138	217	184	231	196	245	207	259	219	271	230	299	253
22	211	166	263	223	280	237	296	251	313	265	328	278	362	306
24	251	198	313	265	333	282	353	299	373	316	391	331	430	365
26	294	233	367	311	391	331	414	351	437	370	458	388	505	428
28	341	270	426	361	453	384	480	407	507	430	532	450	586	496
30	392	310	489	414	520	440	551	467	582	493	610	517	673	570
32	445	352	556	471	592	501	627	531	663	561	694	588	765	648
34	503	398	628	532	668	566	708	600	748	633	784	664	864	732
36	654	446	704	596	749	634	794	672	839	710	879	744	969	820
38	628	497	784	664	834	707	884	749	934	791	979	829	1079	914
40	696	550	869	736	925	783	980	830	1035	877	1085	919	1196	1013
42	767	607	958	811	1019	863	1080	915	1141	967	1196	1013	1318	1116
44	842	666	1052	891	1119	947	1186	1004	1253	1061
46	920	728	1149	973	1223	1035	1296	1097	1369	1159
48	1002	793	1252	1060	1331	1127	1411	1195	1491	1262
50	1088	860	1358	1150	1445	1223	1531	1297	1618	1370
52	1176	930	1469	1244	1562	1323	1656	1402	1750	1482
54	1268	1003	1584	1341	1685	1427	1786	1512	1887	1598
56	1364	1079	1704	1443	1812	1534	1921	1626	2029
58	1463	1157	1827	1547	1944	1646	2060	1745	2177
60	1566	1238	1956	1656	2080	1762	2205	1867	2329
62	1672	1322	2088	1768	2221	1881	2354	1994	2487
64	1782	1409	2225	1884	2367	2004	2508	2124	2650
66	1895	1498	2366	2004	2517	2131	2668	2259	2818
68	2011	1591	2512	2127	2672	2263	2832	2398	2992
70	2132	1686	2662	2254	2831	2398	3001	2541	3170

Product Structure

8×36WS-IWRC
8×36WS-FC
8×41WS-IWRC
8×41WS-FC
8×49SWS-IWRC
8×49SWS-FC
8×55SWS-IWRC
8×55SWS-FC

Parallel lay wire ropes with fiber core / steel core, 8 strands
Nominal Dia. (mm)	Approximate Weight		Nominal Tensile Strength. Mpa
			1570		1670		1770		1870		1960		2160
			Min. Breaking Load. KN
D	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)
mm	kg/100m		KN
10	43.5	34.4	54.3	46	57.8	48.9	61.2	51.9	64.7	54.8	67.8	57.4	74.7	63.3
11	52.6	41.6	65.7	55.7	69.9	59.2	74.1	62.8	78.3	66.3	82.1	69.4	90.4	76.6
12	62.6	49.5	78.2	66.2	83.2	70.5	88.2	74.7	93.2	78.9	97.7	82.7	107.6	91.1
13	73.5	58.1	91.8	77.7	97.7	82.7	103.5	87.6	109.3	92.6	114.6	97.1	126.3	107
14	85.3	67.4	106.5	90.2	113.3	95.9	120	101.6	126.8	107.4	132.9	112.6	146.5	124
16	111	88	139	118	148	125	157	133	166	140	174	147	191	162
18	141	111	176	149	187	159	198	168	210	178	220	186	242	205
20	174	138	217	184	231	196	245	207	259	219	271	230	299	253
22	211	166	263	223	280	237	296	251	313	265	328	278	362	306
24	251	198	313	265	333	282	353	299	373	316	391	331	430	365
26	294	233	367	311	391	331	414	351	437	370	458	388	505	428
28	341	270	426	361	453	384	480	407	507	430	532	450	586	496
30	392	310	489	414	520	440	551	467	582	493	610	517	673	570
32	445	352	556	471	592	501	627	531	663	561	694	588	765	648
34	503	398	628	532	668	566	708	600	748	633	784	664	864	732
36	654	446	704	596	749	634	794	672	839	710	879	744	969	820
38	628	497	784	664	834	707	884	749	934	791	979	829	1079	914
40	696	550	869	736	925	783	980	830	1035	877	1085	919	1196	1013
42	767	607	958	811	1019	863	1080	915	1141	967	1196	1013	1318	1116
44	842	666	1052	891	1119	947	1186	1004	1253	1061
46	920	728	1149	973	1223	1035	1296	1097	1369	1159
48	1002	793	1252	1060	1331	1127	1411	1195	1491	1262
50	1088	860	1358	1150	1445	1223	1531	1297	1618	1370
52	1176	930	1469	1244	1562	1323	1656	1402	1750	1482
54	1268	1003	1584	1341	1685	1427	1786	1512	1887	1598
56	1364	1079	1704	1443	1812	1534	1921	1626	2029
58	1463	1157	1827	1547	1944	1646	2060	1745	2177
60	1566	1238	1956	1656	2080	1762	2205	1867	2329
62	1672	1322	2088	1768	2221	1881	2354	1994	2487
64	1782	1409	2225	1884	2367	2004	2508	2124	2650
66	1895	1498	2366	2004	2517	2131	2668	2259	2818
68	2011	1591	2512	2127	2672	2263	2832	2398	2992
70	2132	1686	2662	2254	2831	2398	3001	2541	3170

Product Structure

8×19S-FC
8×19S-IWRC
8×19W-FC
8×19W-IWRC

Parallel lay wire ropes with fiber core / steel core, 8 strands
Nominal Dia. (mm)	Approximate Weight		Nominal Tensile Strength. Mpa
			1570		1670		1770		1870		1960		2160
			Min. Breaking Load. KN
D	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)	IWR (Steel Core)	FC (Fiber Core)
mm	kg/100m		KN
8	27	21.4	34.8	29.4	37	31.3	39.2	33.2	41.4	35.1	43.4	36.8	47.8	40.5
10	42.2	33.4	54.3	46	57.8	48.9	61.2	51.9	64.7	54.8	67.8	57.4	74.7	63.3
11	51.1	40.4	65.7	55.7	69.9	59.2	74.1	62.8	78.3	66.3	82.1	69.4	90.4	76.6
12	60.8	48.1	78.2	66.2	83.2	70.5	88.2	74.7	93.2	78.9	97.7	82.7	107.6	91.1
13	71.3	56.4	91.8	77.7	97.7	82.7	103.5	87.6	109.3	92.6	114.6	97.1	126.3	107
14	82.7	65.5	106.5	90.2	113.3	95.9	120	101.6	126.8	107.4	132.9	112.6	146.5	124
16	108	86	139	118	148	125	157	133	166	140	174	147	191	162
18	137	108	176	149	187	159	198	168	210	178	220	186	242	205
20	169	134	217	184	231	196	245	207	259	219	271	230	299	253
22	204	162	263	223	280	237	296	251	313	265	328	278	362	306
24	243	192	313	265	333	282	353	299	373	316	391	331	430	365
26	285	226	367	311	391	331	141	351	437	370	458	388	505	428
28	331	262	426	361	453	384	480	407	507	430	532	450	586	496
30	380	301	489	414	520	440	551	467	582	493	610	517	673	570
32	432	342	556	471	592	501	627	531	663	561	694	588	765	648
34	488	386	628	532	668	566	708	600	748	633	784	664	864	732
36	547	433	704	596	749	634	794	672	839	710
38	609	482	784	664	834	707	884	749	934	791
40	675	534	869	736	925	783	980	830	1035	877
42	744	589	958	811	1019	863	1080	915	1141	967
44	817	647	1052	891	1119	947	1186	1004	1253	1061
46	893	707	1149	973	1223	1035	1296	1097	1369	1159
48	972	770	1252	1060	1331	1127	1411	1195	1491	1262
