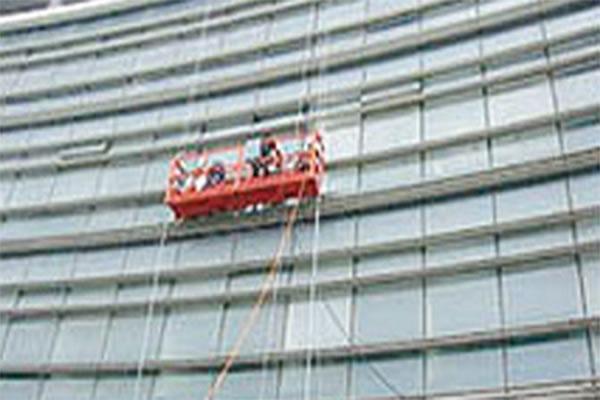

Suspended platform, a kind of temporary suspended access equipment, also known as suspended cradle or gondola, so this wire rope also called as cradle wire rope or gondola rope.

Application
Gondola Ropes are cables that are utilized in the temporary installation of suspended access equipment, window cleaning scaffolding, and manual hoisting equipment.

Characteristic
1. Made from high tensile strength steel wire.
2. Parallel construction, small diameter tolerance and highly flexible.

Product Structure

  • 4×25Fi+FC
  • 4×31SW+FC
  • 6×19W-WSC
  • 6×19S-IWRC
Specifications
4×25Fi-FC、4×31WS-FC
Nominal Diam(mm) Tolerance % Approximate Weight (kg/100m) Nominal Tensile Strength (Mpa)
1870 1960 2060 2160 2260 2360
Min. Breaking Load.KN
6.0 +3 -2 14.8 24.2 25.4 26.7 28.0 29.3 30.6
7.0 20.1 33.0 34.6 36.3 38.1 40.0 41.6
8.0 26.2 43.1 45.2 47.5 49.8 52.1 54.4
8.3 28.2 46.4 48.6 51.1 53.6 56.0 58.5
8.6 30.3 49.8 52.2 54.8 57.5 60.2 62.8
9.0 33.2 54.5 57.2 60.1 63.0 65.9 68.8
9.5 37.0 60.8 63.7 66.9 70.2 73.4 76.7
10 41.0 67.3 70.6 74.2 77.8 81.4 85.0
12 59.2 96.9 102 107 112 117 122
14 80.6 132 138 145 152 159 167
16 105 172 180 190 199 208 217
6×19W-WSC 6×19S-WSC
Nominal Diam(mm) Tolerance % Approximate Weight (kg/100m) Nominal Tensile Strength (Mpa)
1870 1960 2060 2160 2260 2360
Min. Breaking Load.KN
6.0 +3 -2 15.0 24.0 25.1 26.4 27.7 29.0 30.2
7.0 20.5 32.6 34.2 35.9 37.7 39.4 41.2
8.0 26.8 42.6 44.7 46.9 49.2 51.5 53.8
8.3 28.8 45.9 48.1 50.5 53.0 55.4 57.9
8.6 31.0 49.2 51.6 54.2 56.9 59.5 62.1
9.0 33.9 53.9 56.5 59.4 62.3 65.2 68.1
9.5 37.7 60.1 63.0 66.2 69.4 72.6 75.8
10 41.8 66.6 70.0 73.3 76.9 80.5 84.0
12 60.2 95.9 100 106 111 116 121
