Conveyor Belt Steel Cord

Conveyor Belt Steel Cord
Conveyor Belt Steel Cord
Conveyor Belt Steel Cord Conveyor Belt Steel Cord
Inquiry Form

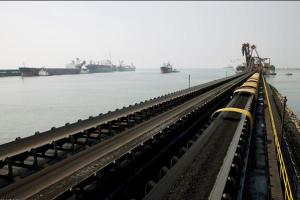

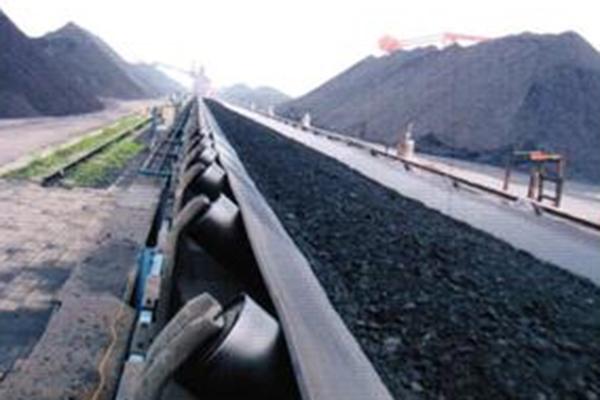

Application
These conveyor belt wire ropes are used to reinforce the rubber belts of conveyor systems from the inside.

Characteristics
· Produced using high strength steel wire
· We can manufacture extra-long steel cords at the request of the customer
· We use sealed packing to maintain the good quality of our products.
· Open structure in order to let the rubber penetrate into the seams between the wires, producing better adhesion and extending the life of the conveyor belt.

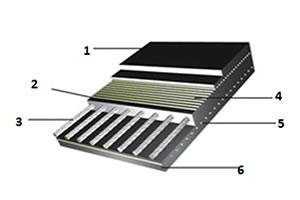

1. Covering rubber
2. Core rubber
3. Wire rope
4. Reinforced layer
5. Reinforced layer
6. Lower covering rubber

Product Structure

  • K7×7
  • K7×19
  • K7×19W
  • 1×19+7×7
Structures and Diameters
K7×7
Nominal Diam (mm) Min.Breaking Strength (N) Linear Density (g/m)
2.00 4160 15.2
2.10 4570 16.7
2.20 4990 18.3
2.30 5510 20.1
2.40 5960 21.8
2.50 6430 23.4
2.60 7270 26.5
2.70 7780 28.3
2.80 8440 30.7
2.90 9000 32.9
3.00 9700 34.7
3.10 10250 36.9
3.20 10800 39.2
3.30 11400 43.0
3.40 12300 45.5
3.50 12800 47.8
3.60 13500 51.0
3.70 14250 53.5
3.80 15000 58.1
3.90 15800 61.0
4.00 16500 64.0
4.10 17400 66.6
4.20 18200 69.8
4.30 19000 73.6
4.40 19800 76.5
4.50 20700 79.8
4.60 21600 82.7
4.70 22500 86.2
4.80 23200 90.5
4.90 24100 93.7
5.00 25000 97.3
5.10 25700 102
5.20 26700 105
5.30 27500 109
5.40 28400 115
5.50 29700 119
5.60 30300 124
5.70 30800 128
5.80 31800 132
5.90 32500 138
6.0 33000 143
K7×19
Nominal Diam (mm) Min.Breaking Strength (N) Linear Density (g/m)
4.00 15500 62
4.20 16800 68
4.40 18400 74
4.60 19700 79
4.80 21200 86
5.00 23900 97
5.20 25300 103
5.40 27000 110
5.60 29000 119
5.80 31600 130
6.00 33300 137
6.20 35700 147
6.40 37400 155
6.60 39500 164
6.80 42700 177
7.00 44900 187
7.20 47100 196
7.40 50600 211
7.60 53000 221
7.80 55100 231
8.00 57200 240
8.20 60100 253
8.40 62400 263
8.60 66100 280
8.80 68300 289
9.00 71200 303
9.20 73900 316
9.40 77000 331
9.60 79700 343
9.80 82200 355
10.00 86300 372
10.20 88900 385
10.40 92500 401
10.60 95100 414
10.80 97700 425
11.00 101600 444
11.20 104300 457
11.40 108900 479
11.60 112500 496
11.80 115600 512
12.00 118500 526
12.20 121100 540
12.40 125100 559
12.60 129500 581
12.70 130900 589
12.80 132700 589
13.00 136600 617
13.20 140200 635
13.40 143100 649
13.60 148800 678
13.80 152300 696
14.00 155400 712
K7×19W
Nominal Diam(mm) Min.Breaking Load (N) Linear Density（g/m)
6,0 34200 147
6,2 36500 157
6,4 38900 167
6,6 41400 178
6,8 43900 189
7,0 46500 200
7,2 49200 212
7,4 52000 223
7,6 54800 236
7,8 57800 248
8,0 60800 261
8,2 63800 274
8,4 67000 288
8,6 70200 302
8,8 73500 316
9,0 76900 330
9,2 80400 345
9,4 83900 361
9,6 87500 376
9,8 91200 392
10,0 95000 408
10,2 98800 424
10,4 103000 441
10,6 107000 458
10,8 111000 476
11,0 115000 494
11,2 119000 512
11,4 123000 530
11,6 128000 549
11,8 132000 568
12,0 137000 588
12,2 141000 607
12,4 146000 627
12,6 151000 648
12,8 156000 668
13,0 160000 690
13,2 165000 711
13,4 171000 733
13,6 176000 755
13,8 181000 777
14,0 186000 800
14,5 200000 858
15,0 214000 918
1×19+7×7
Nominal Diam (mm) Min.Breaking Load (N) Linear Density
（g/m)
6.00 34100 141
6.20 36200 150
6.40 38600 161
6.60 41250 172
6.80 43600 182
7.00 46250 194
7.20 48950 206
7.40 51400 217
7.60 54200 229
7.80 57100 242
8.00 60100 255
8.20 63050 268
7.40 66150 282
8.60 69200 293
8.80 72150 312
9.00 75400 325

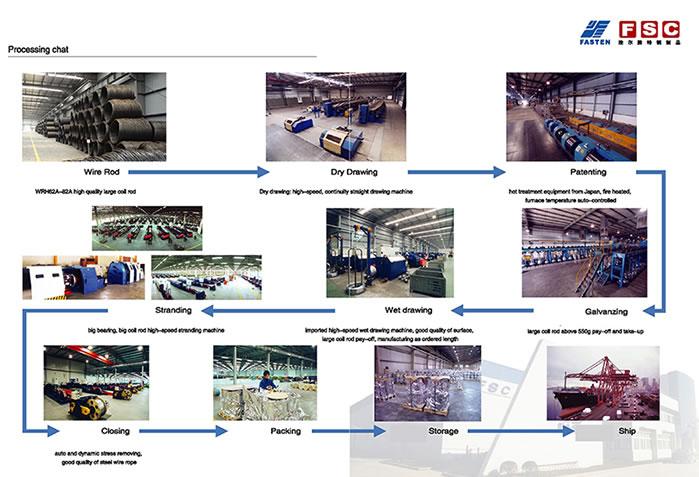

Process Flow Diagram of Wire Rope Production
Remarks during Use and Handing
During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Avoid exposure to moisture. Steel cord must be stored in dry and well ventilated indoor environments.

Pay attention to the twisting direction of the steel cord when installing. Be sure the spool is rotating freely as to achieve identical tension.

In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface to guarantee proper adhesion with rubber.
