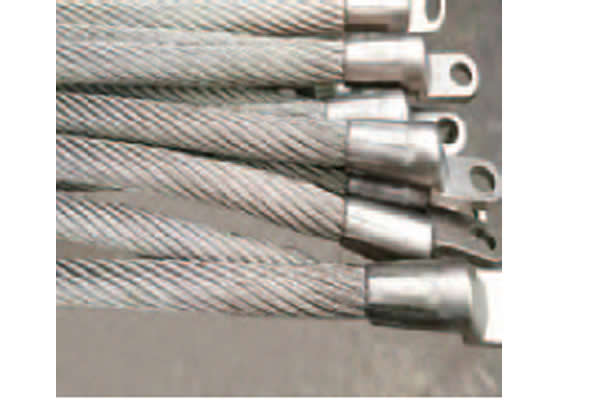

Stainless Steel Aircraft Cable

Stainless Steel Aircraft Cable
Stainless Steel Aircraft Cable
Inquiry Form

Application
These stainless steel wire ropes are versatile cables that can be used for aircraft controls as well as for cranes, hoists, and general engineering purposes.

Characteristic
1. Flexible and easy to use with a wide range of applications.
2. Produced as per DIN standards,(MIL-DTL-83420J)

Product Structures

  • 3×7
  • 7×7(6×7-IWS)
  • 7x19(6x19-IWS)
Specifications
3×7、7×7（6×7-IWS）、7×19（6×19-IWS）
Construction Nominal Dia. （Inch） Nominal Dia. （mm） Tolerance （mm） The Increase of Tolerance After Cutting （mm） Min. Breaking Load（KN） Approximate Weight （kg/100m）
3×7 1/32 0.79 0.15 0.15 0.49 0.24
7×7 3/64 1.19 0.2 0.2 1.2 0.62
7×7 1/16 1.59 0.25 0.23 2.13 1.12
7×19 1/16 1.59 0.25 0.23 2.13 1.12
7×7 3/32 2.38 0.3 0.25 4.09 2.38
7×19 3/32 2.38 0.3 0.25 4.09 2.59
7×19 1/8 3.18 0.36 0.28 7.82 4.31
7×19 5/32 3.97 0.41 0.43 10.67 6.7
7×19 3/16 4.76 0.46 0.48 16.45 9.67
7×19 7/32 5.56 0.46 0.51 22.23 12.8
7×19 1/4 6.35 0.46 0.53 28.45 16.37
7×19 9/32 7.14 0.51 0.58 34.67 20.68
7×19 5/16 7.94 0.56 0.61 40.01 25.74
7×19 3/8 9.52 0.66 0.69 53.34 36.15
