Application

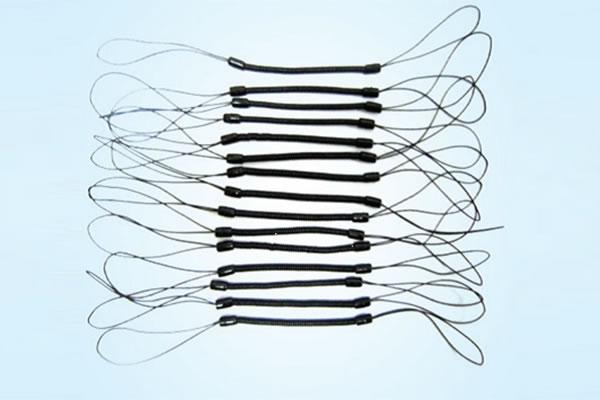

Our stainless steel wire rope for fishing gear is suitable for a wide range of general engineering applications. These cables are often used for crane and hoisting equipment with great performance.

Characteristic
1. Flexible and easy to use with a great range of applications.
2. Produced as per DIN requirements,(GB/T9944-2002) as well as customized requirements.

Product Structures

  • 1×3
  • 3×7
  • 7x7
Specifications
1×3, 3×7, 6×7-IWS
Structure Nominal Diameter (mm) Diameter Tolerance (mm) Min. Breaking Force (KN) Approximate Weight (kg/100m)
1×3 0.15 0/+0.03 0.022 0.012
1×3 0.25 0/+0.03 0.056 0.029
1×3 0.35 0/+0.03 0.113 0.055
1×3 0.45 0/+0.03 0.185 0.089
1×3 0.55 0/+0.06 0.284 0.135
1×3 0.65 0/+0.06 0.393 0.186
3×7 0.7 0/+0.08 0.323 0.182
3×7 0.8 0/+0.08 0.488 0.238
3×7 1 0/+0.12 0.686 0.375
3×7 1.2 0/+0.12 0.931 0.54
7×7 0.45 0/+0.09 0.142 0.08
7×7 0.5 0/+0.09 0.176 0.12
7×7 0.6 0/+0.09 0.253 0.15
7×7 0.7 0/+0.09 0.345 0.2
7×7 0.8 0/+0.09 0.461 0.26
7×7 0.9 0/+0.09 0.539 0.32
7×7 1 0/+0.15 0.637 0.4
7×7 1.2 0/+0.15 1.2 0.65
7×7 1.5 0/+0.20 1.67 0.93
7×7 1.6 0/+0.20 2.15 1.2
7×7 1.8 0/+0.20 2.25 1.35
7×7 2 0/+0.20 2.94 1.65
7×7 2.4 0/+0.30 4.1 2.4
7×7 3 0/+0.30 6.37 3.7
