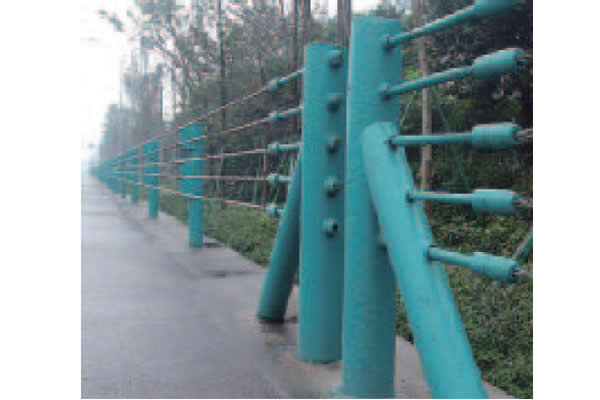

Application: Fasten Road Barrier wire rope is used as a flexible and high strength safety barrier along roadways.
Characteristic: These cables are more reliable than traditional barriers and they can be used for nearly any road and freeway installation.

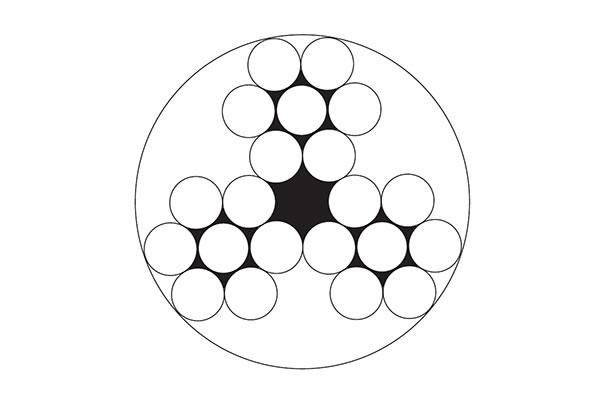

3X7 | |||
Nominal Dia. (mm) | Approximate Weight (kg/m) | Nominal Tensile Strength (Mpa) | |
19 | 1.2 | 1220 | 1370 |
Min. Breaking Load (KN) | |||
165.5 | 175 |
3X7 | ||
Finish | Zinc Mass Coating (g/m2 Min) |
Modulus of Elasticity |
Galvanized (Zn100%) |
400 | 150Mpa (150Mpa(Min) after prestretched) |
Zinc-Aluminum Alloy (Zn95%/Al5%) |
130 (173-220g/m2 actual) |
