ACSR Wire (Aluminum Conductor Steel Reinforced)

ACSR Wire (Aluminum Conductor Steel Reinforced)
ACSR Wire (Aluminum Conductor Steel Reinforced)
Inquiry Form

Product Highlight

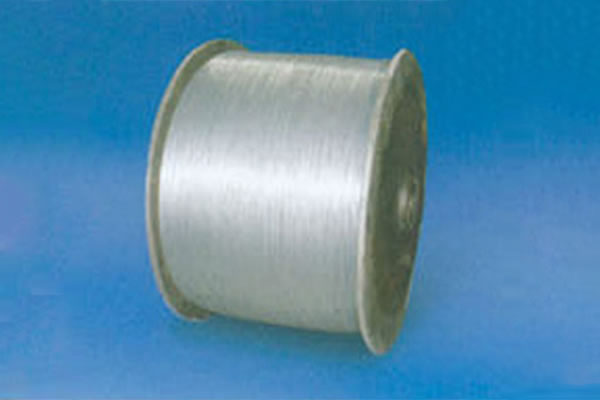

The ACSR cable’s galvanized steel core is manufactured according to EN, JIS, ASTM, ISO standards.

Application

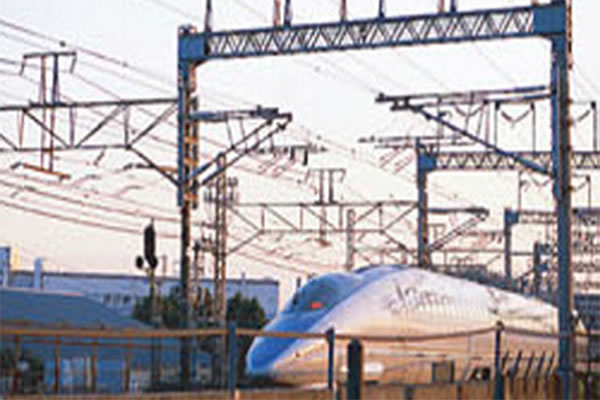

ACSR cables are used for stranded conductors installed in overheard power networks.

Traits
High tensile strength, small tolerance
Shiny surface, good corrosion resistance

Technical Parameters
Nominal Diameter (mm) Tensile Strength (Mpa) Stress at 1% Elongation Twist Times /360° Elongation (Lo=250mm) Standard
1.24-2.25 ≥1960 ≥1600 ≥12 ≥3.0% As per YB, EN,
ISO, JIS, ASTM standard, as well as customer's request
2.25-2.75 ≥1910 ≥1600 ≥12 ≥3.0%
2.75-3.00 ≥1910 ≥1580 ≥12 ≥3.5%
3.00-3.50 ≥1870 ≥1580 ≥12 ≥3.5%
3.50-4.25 ≥1820 ≥1550 ≥10 ≥3.5%
4.25-4.75 ≥1820 ≥1500 ≥8 ≥3.5%
