Application

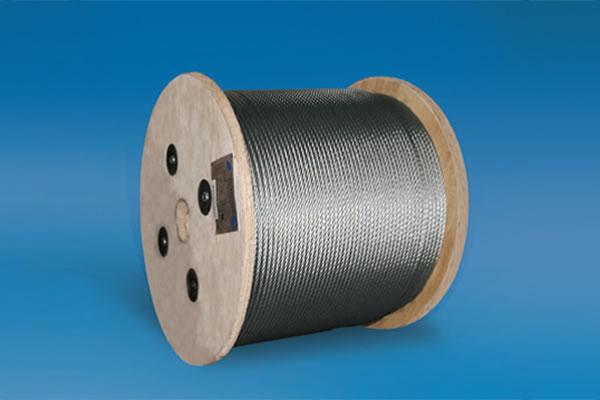

Steel wire rope for winches is designed for winch units on automobiles and marine applications. The cable is high strength and is capable of heavy duty operation.

Characteristic
1. Compact spooling and high flexibility well preformed.
2. High tensile strength and small diameter tolerance

Product Structure

  • 7×19
  • 7×19W
  • 6×31SW-IWRC
Specifications
6×25Fi+IWR 6×29Fi+IWR
6×31SW+IWR 6×36SW+IWR
8×25Fi+IWR 8×29Fi+IWR
8×31SW+IWR 8×36SW+IWR
Nominal Dia. (mm) Min. Breaking
Strength(N) 		Approximate
Weight (kg/100m)
8.2 63 30
8.4 65 31.5
8.6 67 32.8
9 72 35
9.2 78 37.8
9.5 82 40.2
10 88 44.5
10.5 96 47.4
11 104 52
11.5 108 56.9
12 112 61.8
13 120 72.5
14 125 84.1
7×19 8×19-IWR
Nominal Dia. (mm) Min. Breaking
Strength(N) 		Approximate
Weight (kg/100m)
4 13.5 6.4
4.3 15.9 7.5
4.5 17.9 8.4
4.8 20.4 9.5
5 22.2 10.3
5.4 24.3 11.4
5.7 27.1 12.7
6 30 14.4
6.1 31.6 14.9
7.2 41.8 20.4
7.5 45.3 22
7.8 49.4 24
8.1 53.3 26
9.2 67.7 33.4
10.3 81.8 41.8
7×19W
Nominal
Diameter 		Nominal Tensile Strength, Mpa Approximate
Weight
(kg/100m)
1960 2060 2160 2260
mm Minimum Breaking Force (kN)
4 13 13.7 14.3 15 6.9
4.8 18.8 19.7 20.7 21.7 9.9
5.4 23.6 24.8 26 27.2 12.9
6 30 31.5 33 34.6 15.9
6.4 33.3 35 36.7 38.4 18.1
7.2 41.1 43.2 45.3 47.4 22.5
8 51.8 54.4 57.1 59.7 27
8.1 53 55.5 58.1 61 28.2
8.3 55.5 58.3 61.2 64 29.6
8.6 59.5 62.5 65.5 68.6 32.5
9.2 67.3 70.8 74.2 77.7 36.2
9.5 72.6 76.3 80 83.8 37.5
10 82.7 86.9 91.1 95.4 41.6
11 95.7 100.5 105.4 110.3 51.5
12 116.9 122.8 128.8 134.8 59.9
