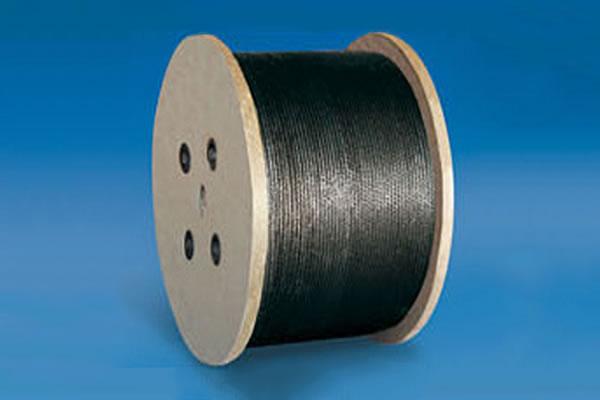

Non-Rotating Steel Wire Rope

Non-Rotating Steel Wire Rope
Non-Rotating Steel Wire Rope
Inquiry Form

Application

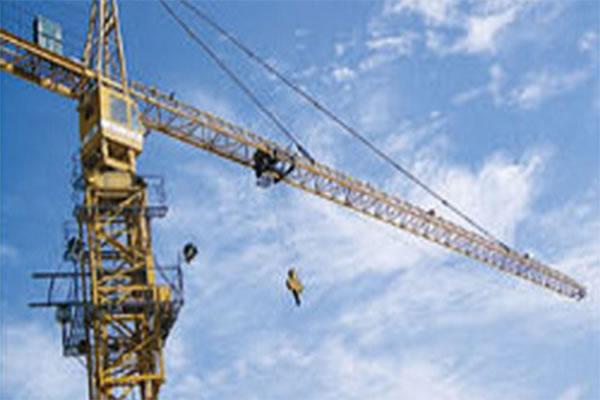

These non-rotating wire ropes are ideal for crane, hoist, and general engineering applications. They feature a design that prevents rotation during hoisting in order to properly control the load.

Characteristic
1. Good wear resistance and high fatigue resistance.
2. Manufactured as per GB, JIS, RR-W, API and other standards, as well as customized orders.

Product Structure

  • 35w×7
Technical Specifications
35W×7
Nominal
Dia. (mm) 		Approx. Weight
(kg/100m) 		Nominal Tensile Strength. Mpa
1570 1670 1770 1870 1960 2160
D Min. Breaking Load. KN
mm kg/100m KN
10 43 56.5 60.1 63.7 67.3 70.6 77.8
12 62 81.4 86.6 91.8 96.9 120 112
14 85 111 118 125 132 138 152
16 110 145 154 163 172 181 199
18 140 183 195 206 218 229 252
20 172 226 240 255 269 282 311
22 208 274 291 308 326 342 376
24 248 326 346 367 388 406 448
26 292 382 406 431 455 477 526
28 338 443 471 500 528 553 610
30 388 509 541 573 606 635 700
32 440 579 616 652 689 723 796
34 498 653 659 737 778 816 899
36 558 732 779 862 872 914 1010
38 621 816 868 920 972 1020 1120
40 690 904 962 1020 1080 1130 1240
42 760 997 1060 1120 1190 1240 1370
44 834 1090 1160 1230 1300 1370 1510
46 910 1200 1270 1350 1420 1490 1650
48 922 1300 1390 1470 1550 1630 1790

Product Structure

  • 17×7-FC
  • 18×7
  • 18×7-FC
  • 19×7
  • 18×19W-FC
  • 19×19W
  • 18×19S-FC
  • 19×19S
  • 18×19-FC
  • 19×19
Technical Specifications
17×7+FC, 17×7+IWS, 18×7+FC, 18×7+IWS, 18×19W+FC, 18×19W+IWS,
18×19S+FC, 18×19S+IWS, 18×19+FC, 18×19+IWS
Nominal
Dia.
(mm) 		Approximate Nominal Tensile Strength. Mpa
1570 1670 1770 1870 1960 2160
Min. Breaking Load
D FC IWR/
IWS		 FC
 IWR/
IWS
 FC
 IWR/
IWS 		FC IWR/
IWS 		FC IWR/
IWS 		FC IWR/
IWS		 FC IWR/
IWS
mm kg/100m KN
4 6.2 6.9 7.8 8.2 8.3 8.8 8.8 9.3 9.3 9.8 9.7 10.3 10.7 11.3
5 9.8 10.8 12.2 12.9 12.9 13.7 13.7 14.5 14.5 15.3 15.2 16 16.7 17.7
6 14 15.5 17.5 18.5 18.6 19.7 19.8 20.9 20.9 22.1 21.9 23.1 24.1 25.5
7 19.1 21.1 23.8 25.2 25.4 26.8 26.9 28.4 28.4 30.1 29.8 31.5 32.8 34.7
8 25 27.5 31.1 33 33.1 35.1 35.1 37.2 37.1 39.3 38.9 41.1 42.9 45.3
9 31.6 34.8 39.4 41.7 41.9 44.4 44.4 47 47 49.7 49.2 52.1 54.2 57.4
10 39 43 48.7 51.5 51.8 54.8 54.9 58.1 58 61.3 60.8 64.3 67 70.8
11 47.2 52 58.9 62.3 62.6 66.3 66.4 70.2 70.1 74.2 73.5 77.8 81 85.7
12 56.2 61.9 70.1 74.2 74.5 78.9 79 83.6 83.5 88.3 87.5 92.6 96.4 102
13 65.9 72.7 82.3 87 87.5 92.6 92.7 98.1 98 104 103 109 113 120
14 76.4 84.3 95.4 101 101 107 108 114 114 120 119 126 131 139
16 99.8 110 125 132 133 140 140 149 148 157 156 165 171 181
18 126 139 158 167 168 177 178 188 188 199 197 208 217 230
20 156 172 195 206 207 219 219 232 232 245 243 257 268 283
22 189 208 236 249 251 265 266 281 281 297 294 311 324 343
24 225 248 280 297 298 316 316 334 334 353 350 370 386 408
26 264 291 329 348 350 370 371 392 392 415 411 435 453 479
28 306 337 382 404 406 429 430 455 454 481 476 504 525 555
30 351 387 438 463 466 493 494 523 522 552 547 579 603 638
32 399 440 498 527 530 561 562 594 594 628 622 658 686 725
34 451 497 563 595 598 633 634 671 670 709 702 743 774 819
36 505 557 631 671 671 710 711 752 751 795 787 833 868 918
38 563 621 703 748 748 791 792 838 837 886 877 928 967 1020
40 624 688 779 828 828 876 878 929 928 981 972 1030 1070 1130
