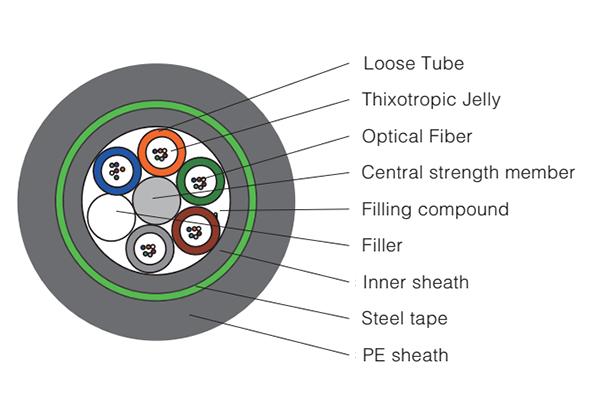

Stranded Optical Fiber Cable GYTY53

Product performance
Fiber count 2~36 38~72 74~84 86~96 98~108 110~120 122~132 134~144
CSM/Steel wire (mm) --/1.8 --/2.2 3.0/2.2 3.6/2.2 4.2/2.2 4.8/2.2 5.6/2.2 6.3/2.2
Element number 6 6 7 8 9 10 11 12
Max. cores in tube 6 12 12 12 12 12 12 12
Cable diameter (mm) 11.8 12.8 13.8 14.4 15 15.6 16.6 17.3
Weight (kg/km) 157 190 214 230 245 261 289 311
Tensile strength (N) long term 1000
short term 3000
Crush Resistance (N/100mm) long term 1000
long term 3000
Bending Radius (mm) dynamic ≥12.5×Cable diameter
static ≥25×Cable diameter
Operating Temperature (℃)  -40 -- +60
Application Aerial, duct, direct burial
