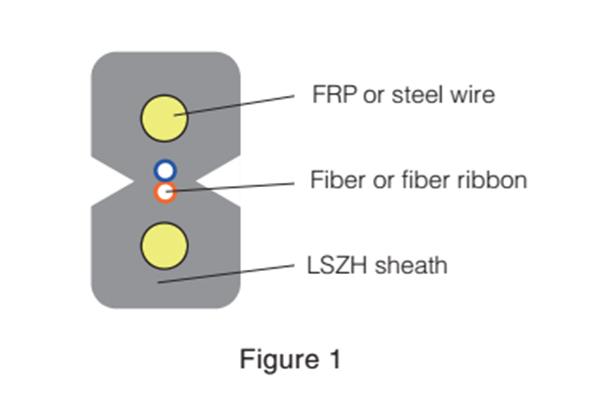

Butterfly drop cable(Figure 1)				Self-supporting butterfly drop cable(Figure 2)
Fiber count		1~2		4		1~2	4
Attenuation G.652 or G.657 @1310/@1550nm		0.36/0.25		0.36/0.25		0.36/0.25	0.36/0.25
Cable diameter (mm)		2.0X3.0(±0.1)		2.0X3.5(±0.1)		2.0X5.3(±0.2)	2.0X5.6(±0.2)
Cable Weight (kg/km)		11		13		22	24
Tensile strength (N)	Long term	metallic strength member	100	Nonmatellic strength member	40	300
	Short term		200		80	600
Crush Resistance (N/100mm)	Long term		1000		500	1000
	Short term		2200		1000	2200
Bending radius (mm)	Static	30（G.652）		15（G.657A）		10（G.657B）
	Dynamic	60（G.652）		30（G.657A）		25（G.657B）
Operating temperature (℃)		-40~+60
Enviromental standards:		IEC60332. Accord with EU ROSH standard. Flame retardant grade accord with IEC60332.
