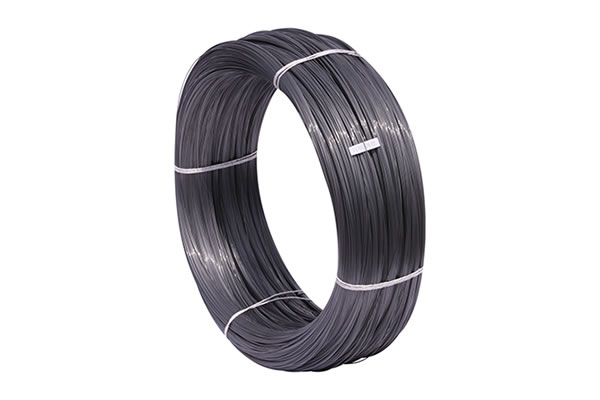

Flexible Shaft Wire

Application:
Steel wires for flexible shafts are designed for a variety of different automotive applications.

Traits:
Strict tolerance
High tensile strength
Good ductility

Surface Finish:
Bright
Galvanizing
Brass coated

Packaging:
Coil
Spool

Technical Data
Diameter mm Tolerance mm Tensile strength Mpa Min. Number of Torsion L=100d Standard
0.4 ±0.013 2140~2440 28 As per YB standard or customer's request.
0.45 ±0.013 2140~2440 27
0.5 ±0.013 2140~2440 27
0.55 ±0.013 2110~2400 27
0.6 ±0.013 2110~2400 26
0.65 ±0.018 2110~2400 26
0.7 ±0.018 2090~2370 26
0.75 ±0.018 2090~2370 26
0.85 ±0.018 2090~2370 26
0.95 ±0.018 2060~2330 26
1.05 ±0.022 2060~2330 26
1.2 ±0.022 2060~2330 26
1.35 ±0.022 2040~2290 26
1.4 ±0.022 2040~2290 26
1.5 ±0.022 2040~2290 26
1.8 ±0.022 2000~2240 26
2.4 ±0.022 1770~1970 26
