Stainless Steel Woven Wire

Stainless Steel Woven Wire
Stainless Steel Woven Wire
Inquiry Form

Traits

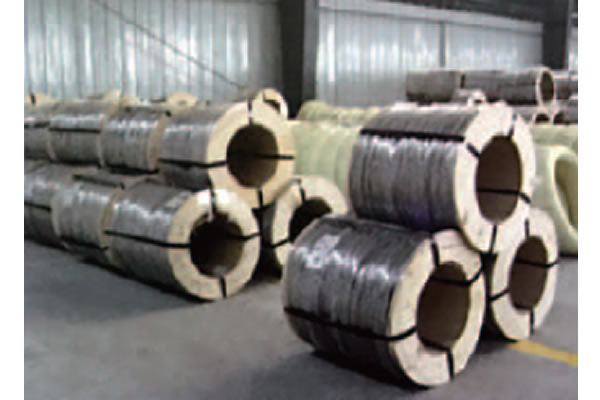

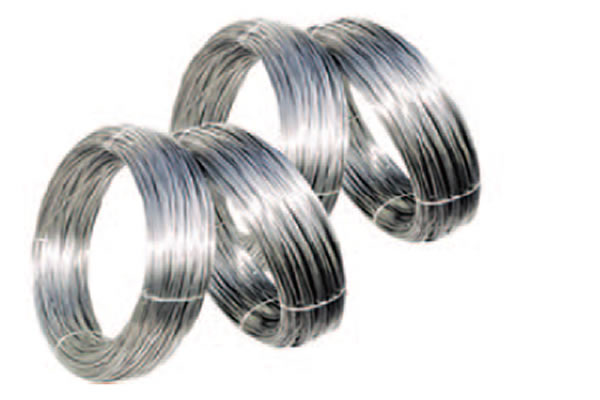

Fasten weaving wire is produced from high quality stainless steel and is notable for its bright finish, toughness, and corrosion resistance. The wire is a highly adaptable for many different products like steel wire cloth, meshes, nets and belts.

Applications
Cloth made from our weaving wire is widely used in the chemical, food processing, petroleum, kitchen utensils, paper, pulp and conveyor belt applications.

Product Grade
Grade Chemical Composition (%) Max. Work Temperature Specific Properties
AISI SUS C Si Mn Ni Cr Mo
304 304 ≤0.06 ≤1.0 ≤2.0 8.0-10.5 18-20 - - For general nets and belts
304L 304L ≤0.03 ≤1.0 ≤2.0 9-13 18-20 - - Intergranular corrosion resistance
316 316 ≤0.08 ≤1.0 ≤2.0 10-14 16-18 2-3 - Corrosion resistance
316L 316L ≤0.03 ≤1.0 ≤2.0 12-15 16-18 2-3 - Intergranular corrosion resistance
309S 309S ≤0.08 ≤1.0 ≤2.0 12-15 22-24 - 920℃ Highly resistant to high temperatures
for a long time
310S 310S ≤0.08 ≤1.5 ≤2.0 19-22 24-26 - 1070℃ Excellent in resistance to high temperature condition, thermal shock and heating cycles are repeated
314 314 ≤0.25 ≤2.0 ≤2.0 19-22 23-26 - 1120℃ Increase the resistance to oxidation at the base of Type 310
Specifications
Size (mm) Tensile Strength (kg/mm2) Elongation (%) Packing Weight (kg)
0.60-1.60 60-70 ≥40 Coil, core 200-300
1.61-4.99 55-65 ≥45 Coil, core, carrier 400-500
5.00-8.00 50-60 ≥45 Coil, core, carrier 400-500
