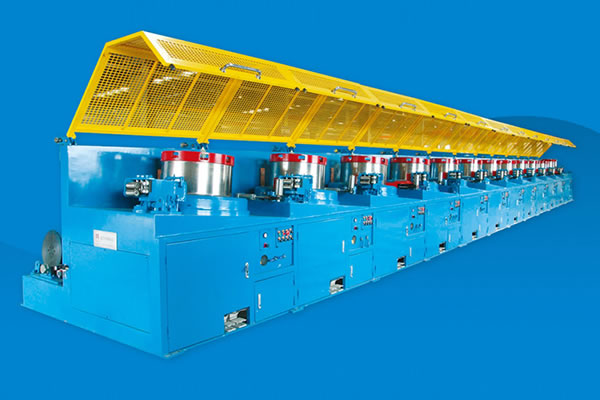

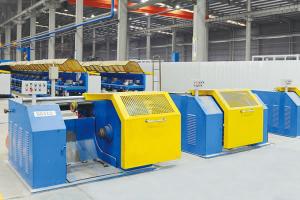

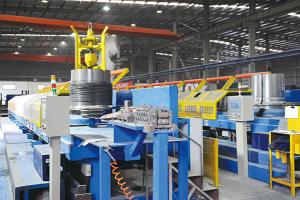

Main Function:
1. Automatic deceleration, disconnection detection and auto stop
2. Reels can be removed arbitrarily, and processes are combined at will.
3. Automatic deceleration or stopping when the protective cover is open.
4. Display all kinds of information regarding the fault, motion, and the processing information
Transmission:
1. Secondary belt drives
2. Double enveloping worm gear pair
3. Hard surface reducer
Timing mode:
Exchange frequency or DC speed
Control mode:
Composed of Profibus field bus control system, touch-screen display, interactive, remote diagnostic capabilities

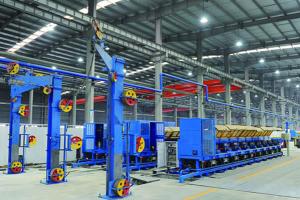

Pay-off mode:
Spool pay-off machine, high pay-off stand, straight-line pay-off and arm type pay-off are capable of running without halt.
Take-up mode:
Spool take-up machine, trunk take-up machine and handstand type wire drawing machine can lay down wires without halt.
Suitable for drawing:
Steel wires (high, medium and low carbon wire, stainless steel wire, prestressed wire, tire bead wire, rubber tube wire, spring wire, steel cord, etc.)
| Specifications | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 | 900 | 1200 |
| Reel diameter | |||||||||||
| Line strength/MPa | ≤1250 | ||||||||||
| Drawing pass | 2~11 | 2~11 | 2~11 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 |
| Max. incoming lines | 2.8 | 3.5 | 4.2 | 5 | 5.5 | 6.5 | 8 | 10 | 12.7 | 14 | 16 |
| Diameter mm | |||||||||||
| Minimum wire | 0.5 | 0.6 | 0.75 | 1 | 1.2 | 1.4 | 1.6 | 2.2 | 2.6 | 3 | 5 |
| Diameter mm | |||||||||||
| Maximum drawing | ~25 | ~20 | ~20 | ~16 | ~15 | ~15 | ~12 | ~12 | ~8 | ~7 | ~6 |
| Speeds m/s | |||||||||||
| Drawing power/kW | 7.5~18.5 | 11~22 | 11~30 | 15~37 | 22~45 | 22~55 | 30~75 | 45~90 | 55~110 | 90~132 | 110~160 |
