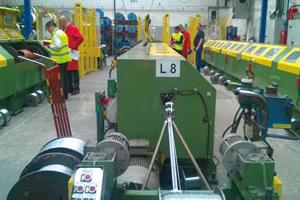

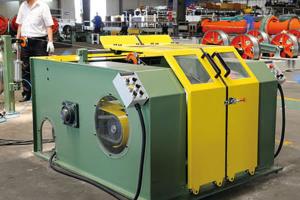

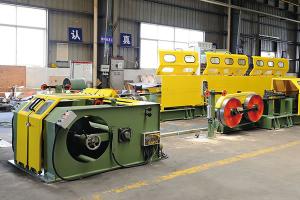

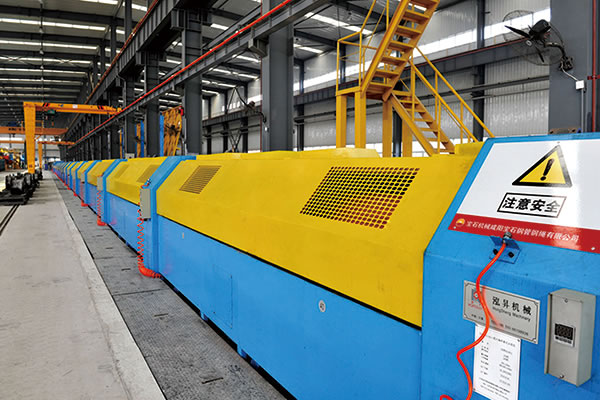

Tubular Wire Stranding Machine

Applications:
1. The tubular stranding machine is exclusively used for the production of small-cross-section copper stranded wires or aluminum stranded wires
2. The tubular strander is ideal for the stranding of tire wire ropes in metal product manufacturing plants

Technical Parameters of the Tubular Stranding Machine
Capstan mm 300 400 450 500 550 600 650 700 760
Annealed low carbon steel
Annealed stainless steel
mm 0.5~1.6 0.7~2.0 0.8~2.5 1.0~3.0 1.4~4 1.7~5.5 1.8~6 2.0~6.5 2.0~7
Drawn low carbon steel
Drawn stainless steel
mm 0.5~1.6 0.6~1.8 0.8~2.2 1.0~2.5 1.4~3.5 1.7~4.5 1.8~5 2.0~5.5 2.0~5.5
Patented high carbon steel mm 0.5~1.2 0.6~1.8 0.8~2.2 1.0~2.5 1.4~3.5 1.7~4.5 1.8~5 1.8~5.5 2.0~5.5
Drawn high carbon steel mm NO NO NO 1.0~2.0 1.4~2.4 1.7~2.8 1.7~3 1.8~3.3 1.8~3.5
Interaxis "A" mm 1000 1100 1200 1300 1380 1460 1510 1560 1620
Width "B" mm 2000 2200 2400 2950 3000 3100 3200 3300 3400
Height "C" mm 1750+D 1750+D 1750+D 1750+D 1850+D 1850+D 1850+D 1900+D 1950+D
