Product Description

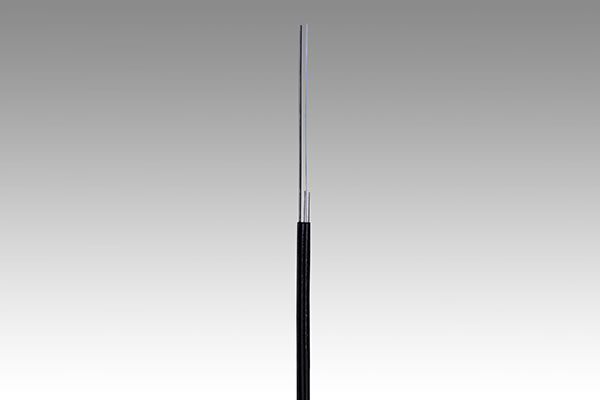

Potevio Fasten's bend insensitive type-B optical fiber complies with or exceeds the specification of ITU-T G.657 recommendation of type-B optical fiber. The fiber adopts the manufacture process of low water peak fiber with low attenuation at all wavelength (1260nm-1625nm). Compared with common single mode fiber, this fiber has better bend resistance. Under the windows of 1550nm, the appended attenuation of fibers with 7.5mm bend radius is less than 0.5dB, which can satisfy the special demand of bend capability of cables with smaller bend radius and optical components with small size.
| Item | Unit | ||
| Transmission Performance | |||
| Attenuation at 1310nm | dB/km | ≤0.35 | |
| Attenuation at 1550nm | dB/km | ≤0.21 | |
| Attenuation at 1625nm | dB/km | ≤0.23 | |
| Attenuation at 1383±3nm | dB/km | ≤0.35 | |
| Attenuation discontinuity | dB | ≤0.05 | |
| Attenuation-wavelength characteristic | dB/km | ≤0.03 | |
| Zero dispersion wavelength | nm | 1300~1324 | |
| Zero dispersion slope | ps/(nm2.km) | ≤0.090 | |
| Dispersion at 1288-1339nm | ps/(nm.km) | ≤3.5 | |
| Dispersion at 1271-1360nm | ps/(nm.km) | ≤5.3 | |
| Dispersion at 1550nm | ps/(nm.km) | ≤18 | |
| PMD | ps/ km | ≤0.1 | |
| Cut-off wavelength（λcc） | nm | ≤1260 | |
| Macro-bend Loss | |||
| R15mm/10turns/1550nm | dB | ≤0.03 | |
| R10mm/1turn/1550nm | dB | ≤0.1 | |
| R7.5mm/1turn/1550nm | dB | ≤0.5 | |
| R15mm/10turns/1625nm | dB | ≤0.1 | |
| R10mm/1turn/1625nm | dB | ≤0.2 | |
| R7.5mm/1turn/1625nm | dB | ≤1 | |
| Geometric Performance | |||
| Mode field diameter at 1310nm | μm | （8.6~9.2）±0.4 | |
| Cladding diameter | μm | 125±0.7 | |
| Core/Cladding Concentricity Error | μm | ≤0.5 | |
| Cladding Non-Circularity | % | ≤1 | |
| Coating diameter（uncolored） | μm | 243±7 | |
| Cladding/Coating Concentricity Error | μm | ≤8 | |
| Mechanical Performance | |||
| Proof test level | % | ≥1.0 | |
| Fiber Strength | 10m, Weibull lowest probability level:2.76GPa（15%） | ||
| Dynamic corrosion parameter nd | ≥20 | ||
| Curl radius | m | ≥4 | |
| Strip force | Average value | N | 1~5 |
| Peak value | 1.3~8.9 | ||
| Environment Performance | |||
| Temperature performance（－60~＋85℃） | Additional attenuation ≤0.05dB/km is allowed at 1310nm and 1550nm. |
||
| Immersing performance（23±2℃， 30days） | |||
| Humidity and heat performance （85±2℃，humidity degree over 85%，30days） |
|||
| Heat aging performance（85±2℃， 30days） | |||
