Key Features of the Annealed Wire

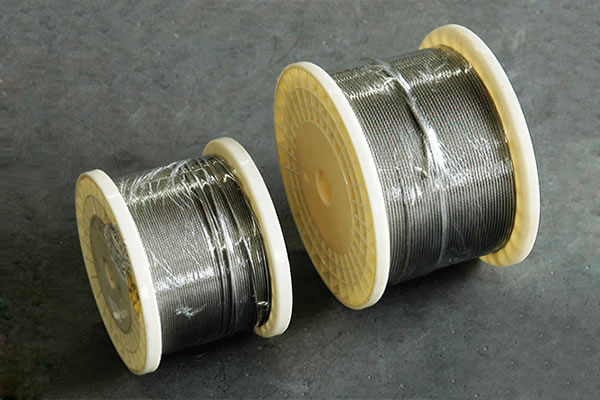

Annealed wire is a versatile material that can satisfy the requirements for fine mesh screens used in filtering, printing, automotive, and chemical industrial applications. The redrawn wire is extremely fine but does not sacrificed on tensile strength, particularly when used in a woven structure. We produce annealed wire in mill coils, pail packs, or carrier-less cores.
Main Advantages
High formability
Low working stress
Excellent surface quality
Low tool wearing
Superior low magnetism after heading and threading
Main Uses

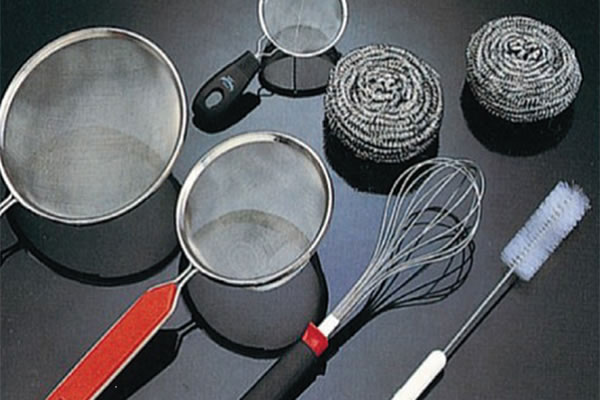

Scrubbers, Filter screen
Product Grade | Chemical Composition (%) | ||||||||
AISI | SUS | C | Si | Mn | P | S | Ni | Cr | Other |
304 | 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-10.50 | 18.00-20.00 | - |
302HQ | XM-7 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-10.50 | 17.00-19.00 | Cu: 3.00-4.00 |
- | 304J3 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-10.50 | 18.00-19.00 | Cu: 1.00-3.00 |
305 | 305J1 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 11.00-13.50 | 16.50-19.00 | - |
316 | 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00-14.00 | 16.00-18.00 | Mo:2.00-3.00 |
- | - | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.040 | ≤0.030 | 10.50-13.50 | 16.00-18.00 | Cu: 2.80-3.80 |
Mo: 2.00-3.00 | |||||||||
430 | 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.030 | - | 16.00-18.00 |
